Gigabyte · motherboard
Gigabyte B550M K AM4 DDR4 Micro ATX
AMD B550 · MATX · 2× M.2folosit în 76 build-uri publicate
Înlocuitori pentru motherboard
11
- Colorful X570M CVN GAMING FROZEN V14 AM4 DDR4 Micro ATXsame slot, strictly betterSe potrivește în buildUpgrade-uri

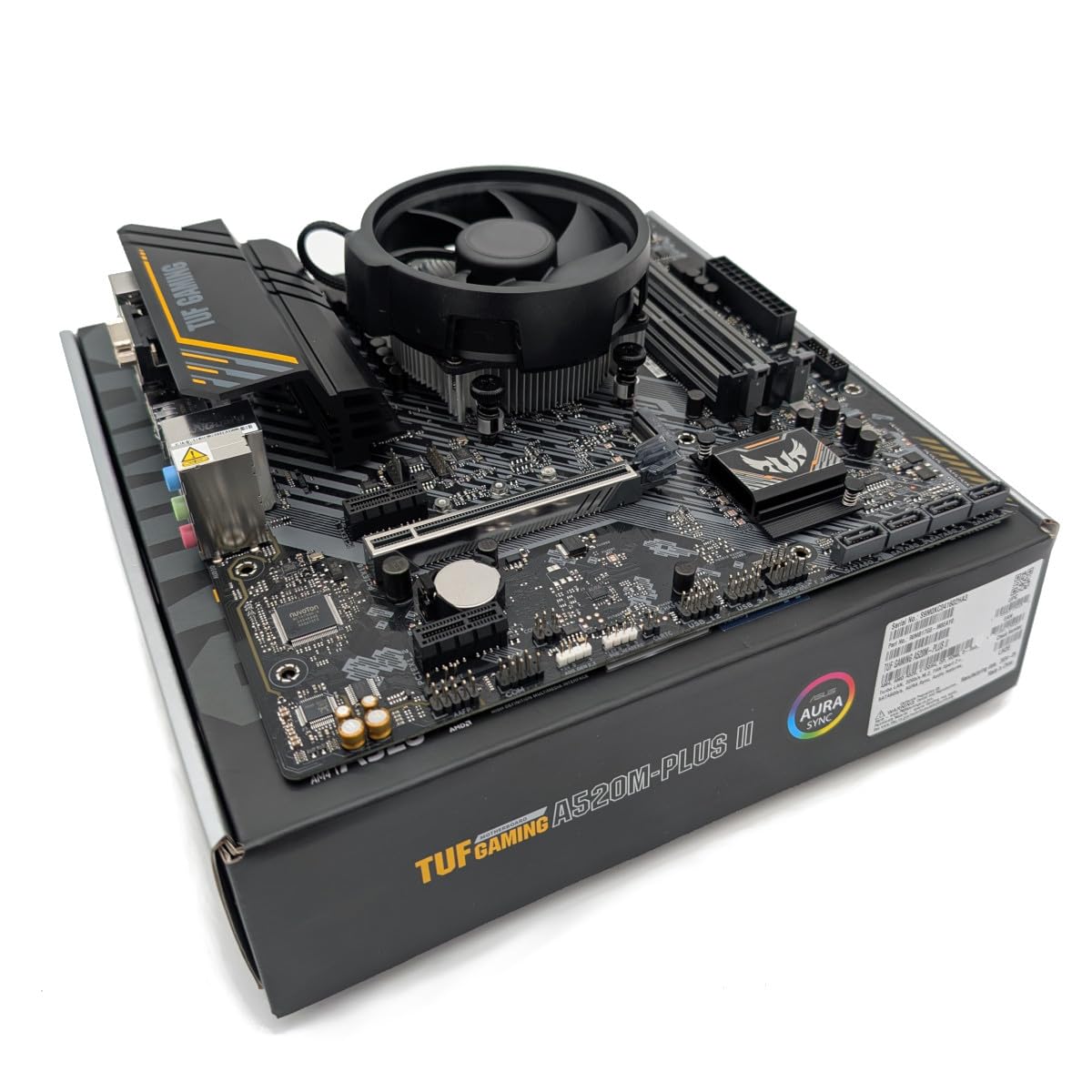

Asus TUF GAMING A520M-PLUS AM4 DDR4 Micro ATXinterchangeable substitute in the same slotSe potrivește în buildAlternative
Gigabyte B550M AORUS ELITE AX DDR4 Micro ATXinterchangeable substitute in the same slotSe potrivește în buildAlternative- Gigabyte A520M DS3H WIFI6Einterchangeable substitute in the same slotSe potrivește în buildAlternative
Socket
AM4
Chipset
AMD B550
Format
MATX
Memorie
DDR4
Memorie maximă
128 GB
Sloturi M.2
2
Vecinătate
Vecini de top grupați pe relație — click ca să deschizi
Treci peste o piesă ca să vezi ce este — click ca s-o deschizi
Specificații
Date din catalog
Sursa: OpenDB- Audio · Chipset
- Realtek
- Audio · Channels
- 7.1
- Color
- BROWN, GREY, BLACK
- Memory · Max
- 128 GB
- Memory · Slots
- 4
- Memory · RAM type
- DDR4
- Socket
- AM4
- Chipset
- AMD B550
- M.2 slots 1
- Key M · 2280 · PCIe 4.0 x4
- M.2 slots 2
- Key M · 2280 · PCIe 3.0 x2
- PCIe slots 1
- Gen 4.0 · Lanes 16 · Quantity 1
- PCIe slots 2
- Gen 3.0 · Lanes 1 · Quantity 1
Arată încă 19 specificații
- ECC support
- Da
- Fan headers · CPU fan
- 1
- Fan headers · Case fan
- 1
- Form factor
- Micro ATX
- USB headers · USB 2.0
- 1
- USB headers · USB 3.2 gen 1
- 1
- Raid support
- Da
- Bios features · Flashback
- Nu
- Bios features · Clear cmos
- Nu
- Storage devices · SATA 6 gb s
- 64
- Back panel ports
- 1 x PS/2 keyboard/mouse port, 1 x DisplayPort, 1 x HDMI port, 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 LAN port, 3 x audio jacks
- Onboard ethernet 1
- 1 Gb/s · Realtek
- Power connectors · CPU power
- 8-pin
- Power connectors · Main power
- 24-pin
- Front panel headers · HDD led
- Da
- Front panel headers · Power led
- Da
- Front panel headers · Power button
- Da
- Front panel headers · Reset button
- Da
- Back connect connectors
- Nu
Build-uri care o folosesc
76- AMD Ryzen 5 5600 · AMD B550 · 32GB DDR4 · 2TB NVMe + 2TB HDD buildSmart build — best all-round€568
- AMD Ryzen 5 5600GT · AMD B550 · Fanless PSU · 32GB DDR4 · 2TB NVMe + 2TB HDD buildSmart build — best all-round≈ €621
- AMD Ryzen 5 5600GT · AMD B550 · Fanless PSU · 32GB DDR4 · 2TB NVMe + 2TB HDD buildSmart build — best all-round≈ €625
- AMD Ryzen 5 5500 · AMD B550 · 16GB DDR4 · 1TB NVMe + 16TB HDD buildSmart build — best all-round€681
- AMD Ryzen 5 5600XT + GeForce RTX 3050 6 GB · AMD B550 · 16GB DDR4 · 2TB NVMe buildValue build — most for your money€692
- AMD Ryzen 5 5600XT + Radeon RX 580 · AMD B550 · Fanless PSU · 32GB DDR4 · 2TB NVMe buildSmart build — best all-round€715
Verifică compatibilitatea
Alege orice altă componentă — verdict live din kernel · Baza: Gigabyte B550M K AM4 DDR4 Micro ATX
Se potrivește cu
18- Cougar GEX X2 Black 1000W Fully Modular 80+ Gold CertifiedCougar · psu — ATX PSU for full-size build
- Fractal Design Define R4 ATX Mid Tower Black / Gray with Acrylic Side Panel and USB 3.2 Gen 1 Type-A, USB 2.0 Type-AFractal Design · case — fits a MATX case
- Cougar DarkBlader-G ATX Full Tower Black / Silver with Tempered Glass Side Panel and USB 3.2 Gen 1 Type-A Front PanelCougar · case — fits a MATX case
- Lian Li LANCOOL 216 EATX Mid Tower White Tempered Glass RGB w/ControllerLian Li · case — fits a MATX case
- Thermaltake View 380 XL WS ARGB Mid Tower Chassis Wood Edition SnowThermaltake · case — fits a MATX case
- SeaSonic ATX3-FOCUS-GX White 850W Fully Modular 80+ GoldSeaSonic · psu — ATX PSU for full-size build
- Zalman TeraMax II ATX 1200W Fully Modular 80+ Gold CertifiedZalman · psu — ATX PSU for full-size build
Alternative
4- Asus TUF GAMING A520M-PLUS AM4 DDR4 Micro ATXASUS · motherboard — interchangeable substitute in the same slot
- Gigabyte B550M AORUS ELITE AX DDR4 Micro ATXGigabyte · motherboard — interchangeable substitute in the same slot
Upgrade-uri
7- Colorful X570M CVN GAMING FROZEN V14 AM4 DDR4 Micro ATXColorful · motherboard — same slot, strictly better
